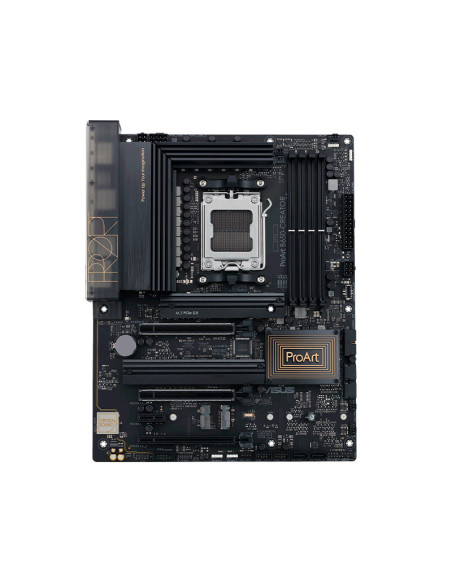

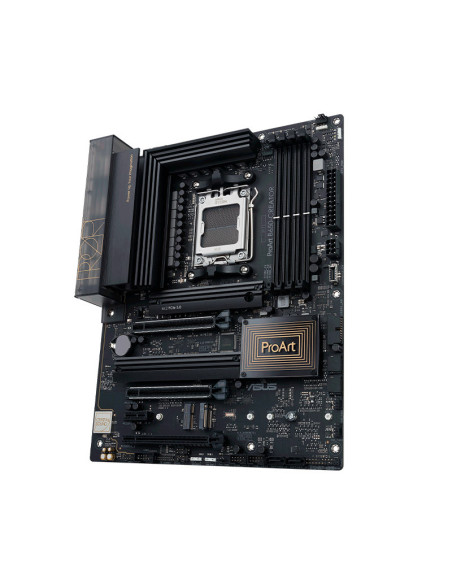

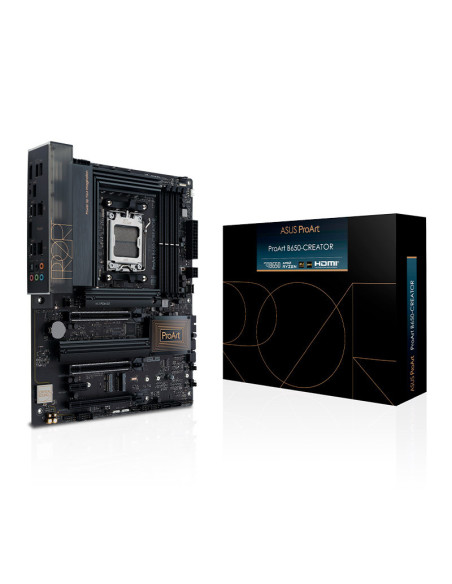

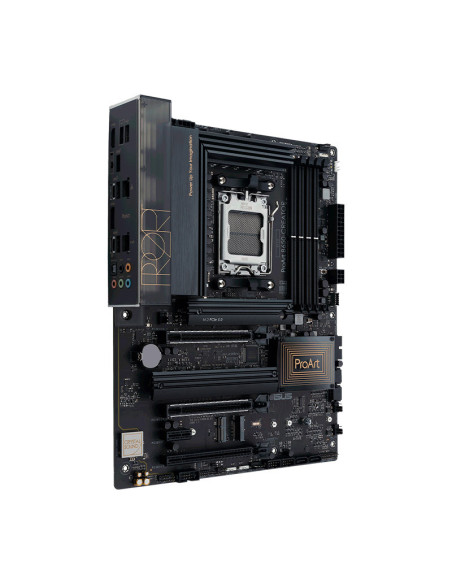

Asus ProArt B650-CREATOR ATX AMD Socket AM5

Procesador

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset

• AMD B650

Memoria

• 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II

Slots

• AMD Ryzen™ 7000 Series Desktop Processors*
• 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
• AMD B650 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)**
• 1 x PCIe 4.0 x1 slot
• * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
• ** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled.
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Gráficos

• 1 x HDMI® port
• 1 x USB Type-C® port supports DisplayPort output
• * Graphics specifications may vary between CPU types.
• ** Supports 4K@60Hz as specified in HDMI 2.1.
• *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.

Almacenamiento

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen™ 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• AMD B650 Chipset
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
• 4 x SATA 6Gb/s ports
• *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
• ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.

USB

• Rear USB (Total 7 ports)
• 1 x USB 3.2 Gen 2 port (1 x USB Type-C®, shared with DisplayPort graphic output )
• 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback"
• Audio Features
• - Power pre-regulator reduces power input noise to ensure consistent performance
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Dedicated audio PCB layers
• - Audio cover
• - Unique de-pop circuit

Conectividad y redes

• 1 x Realtek 2.5Gb Ethernet
• 1 x Realtek 1Gb Ethernet
• ASUS LANGuard
• M.2 slot only (Key E, PCIe)

Conectores Internos

• I/O ConnectorsFan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 1 x 6-pin PCIe Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x M.2 slot (Key E)
• 1 x 20-5 pin System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

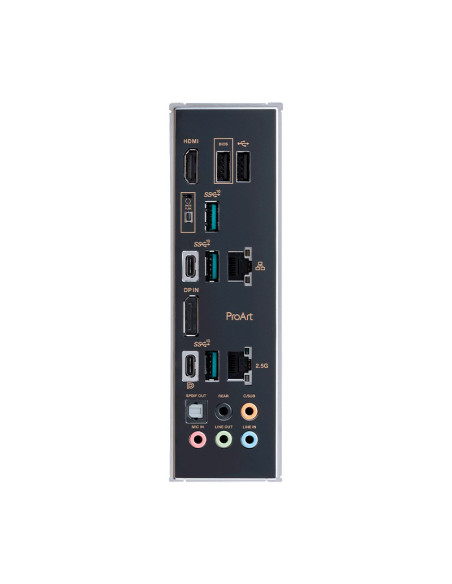

Conectores Traseros

• 1 x USB 3.2 Gen 2 port (1 x USB Type-C®, shared with DisplayPort graphic output )
• 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort (Input only)
• 1 x HDMI® port
• 1 x Realtek 2.5Gb Ethernet
• 1 x Realtek 1Gb Ethernet
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button

Factor de forma

• ATX Form Factor
• 30.5 cm x 24.4 cm

Más información en la web del fabricante.

• https://www.asus.com/motherboards-components/motherboards/proart/proart-b650-creator/techspec/
