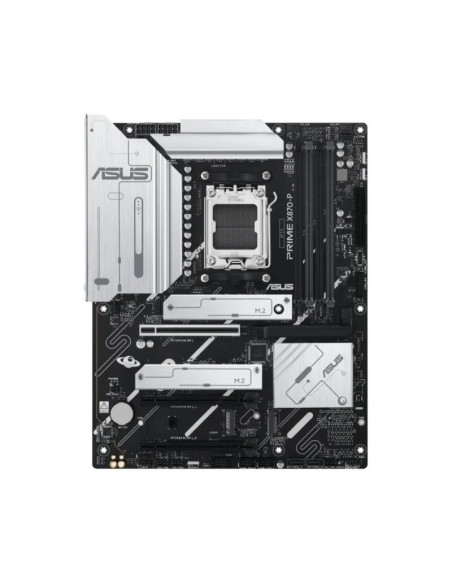

Asus Prime X870-P ATX AMD Socket AM5

Procesador

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset

• AMD X870

Memoria

• 4 x DIMM slots, max. 192GB, DDR5
• Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
• ECC and Non-ECC, Un-buffered DIMM*
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Slots

• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• 2 x PCIe 4.0 x16 slots (support x1 mode)

Gráficos

• 1 x HDMI™ port
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Almacenamiento

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)
• 2 x SATA 6Gb/s ports

USB

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

Conectividad y redes

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• 4 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

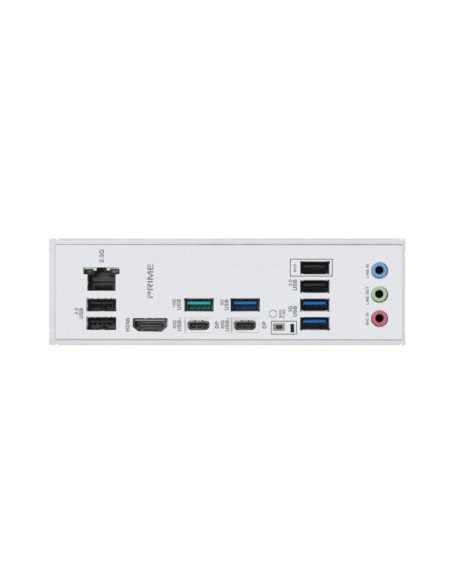

Conectores Traseros

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI™ port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button

Factor de forma

• ATX (30.5x24.4cm)
