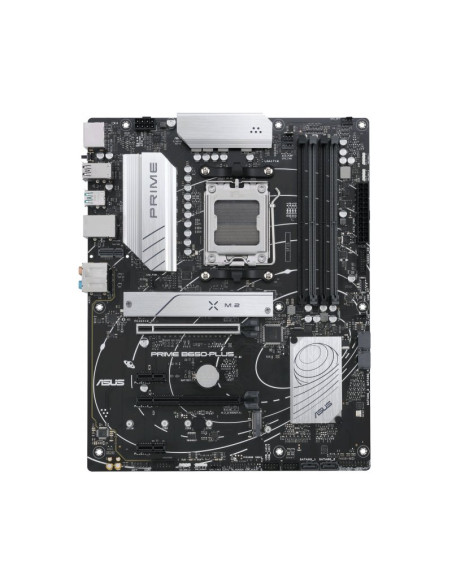

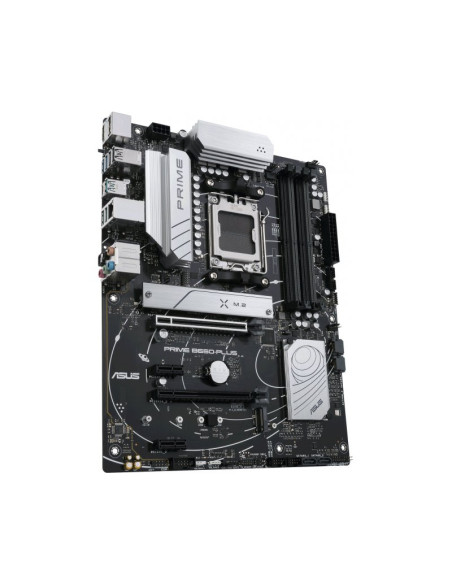

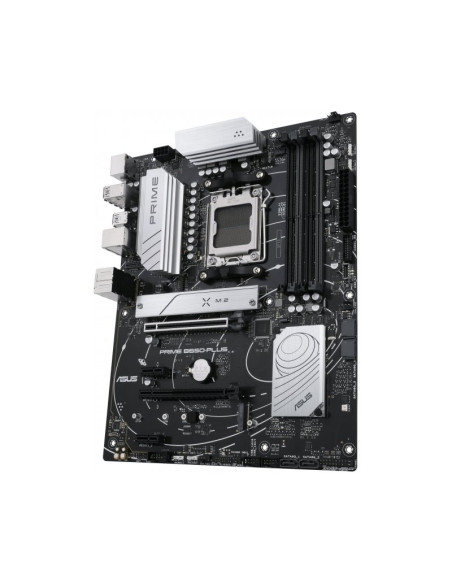

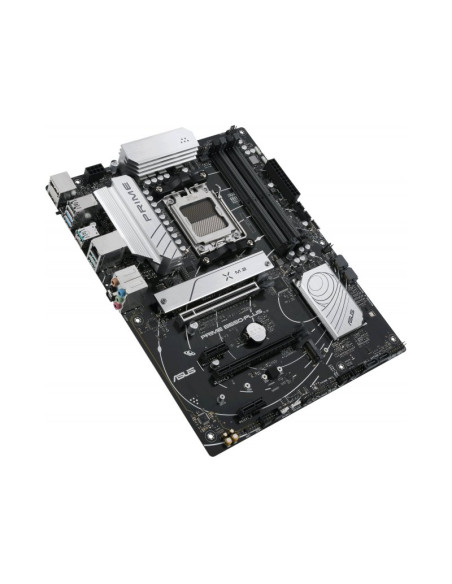

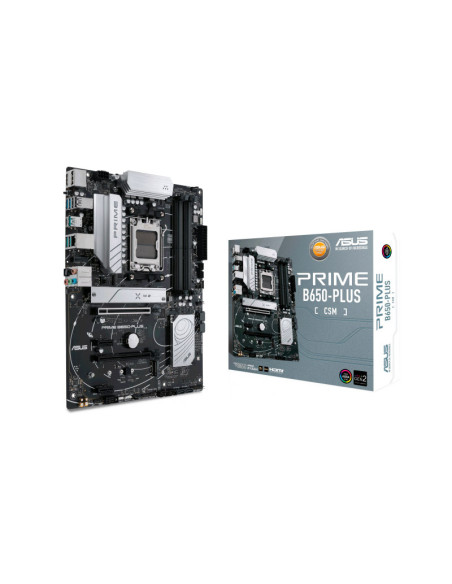

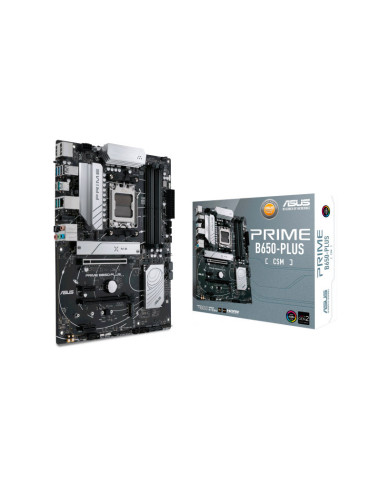

Asus Prime B650-Plus-CSM ATX AMD Socket AM5

Procesador

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset

• AMD B650

Memoria

• 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/
• 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II

Slots

• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• 1 x PCIe 4.0 x16 slot (support x4 mode)
• 2 x PCIe 4.0 x1 slots

Gráficos

• 1 x DisplayPort
• 1 x HDMI

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

• 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Realtek 2.5Gb Ethernet
• Vertical M.2 slot only (Key E, PCIe)*

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt™ (USB4®) header

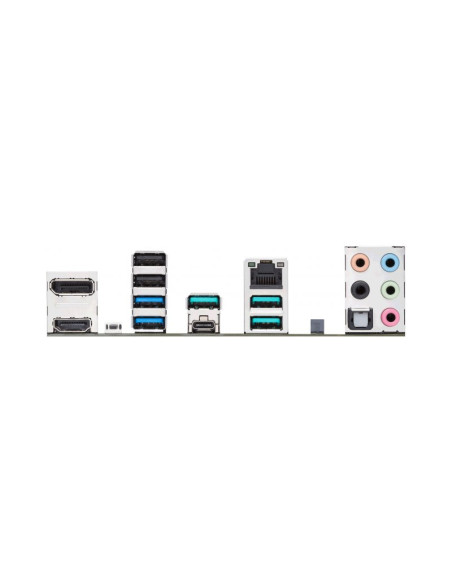

Conectores Traseros

• 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Vertical M.2 slot (Key E)
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button

Factor de forma

• ATX ( 30.5 cm x 24.4 cm )

Más información en la web del fabricante: https://www.asus.com/motherboards-components/motherboards/csm/prime-b650-plus-csm/techspec/
