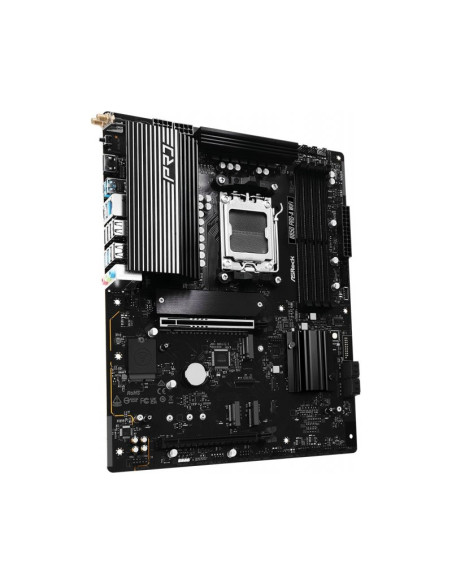

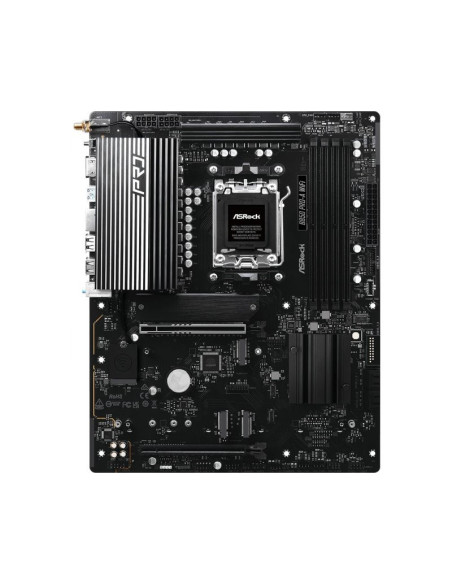

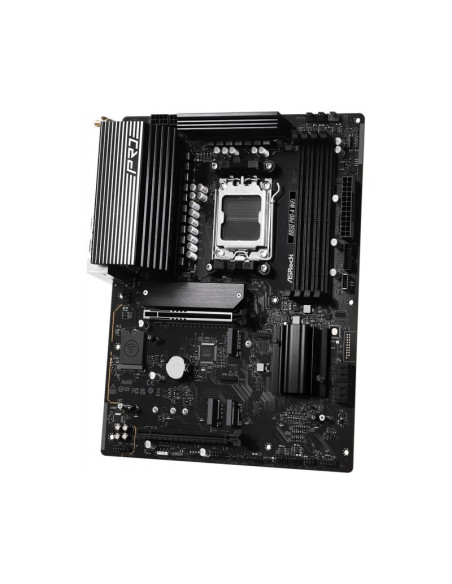

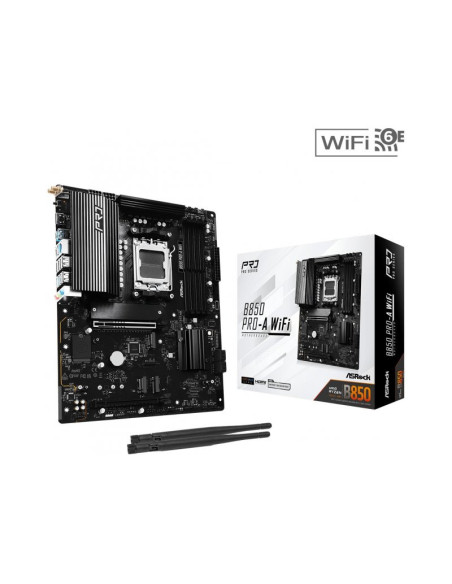

Asrock B850 Pro-A WiFi ATX AMD Socket AM5

Procesador

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset

• AMD B850

Memoria

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
• Max. capacity of system memory: 256GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Slots

• CPU:
• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
• 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Gráficos

• Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a)

Almacenamiento

• CPU:
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset:
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode
• 2 x SATA3 6.0 Gb/s Connectors
• ASMedia ASM1061:
• 2 x SATA3 6.0 Gb/s Connectors
• Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

• CPU:
• 1 x USB 3.2 Gen2 Type-C (Rear)
• 1 x USB 3.2 Gen1 Type-C (Rear)
• 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2))
• Chipset:
• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front)
• 9 x USB 2.0 (6 Rear, 3 Front)

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Conectividad y redes

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control
• 802.11axe Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe
• Supports Dual-Band 2x2 with extended 6GHz band* support
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.2
• Supports MU-MIMO

Conectores Internos

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

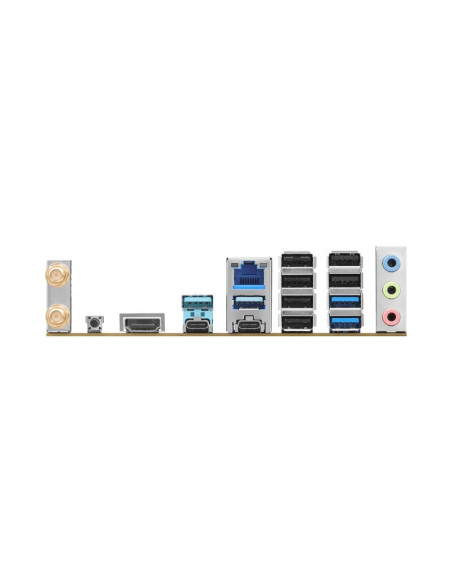

Conectores Traseros

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• 1 x USB 3.2 Gen1 Type-C Port (DP-alt mode supports DP1.4a)
• 4 x USB 3.2 Gen1 Type-A Ports
• 6 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone

Factor de forma

• ATX Form Factor: 30.5 cm x 24.4 cm

Más información en la web del fabricante:

• https://www.asrock.com/MB/AMD/B850%20Pro-A%20WiFi/index.asp#Specification
