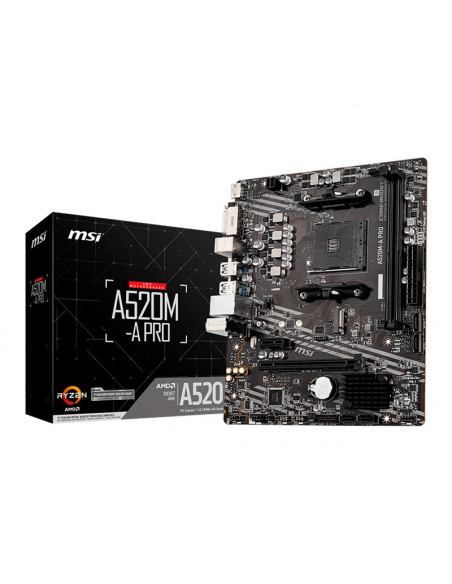

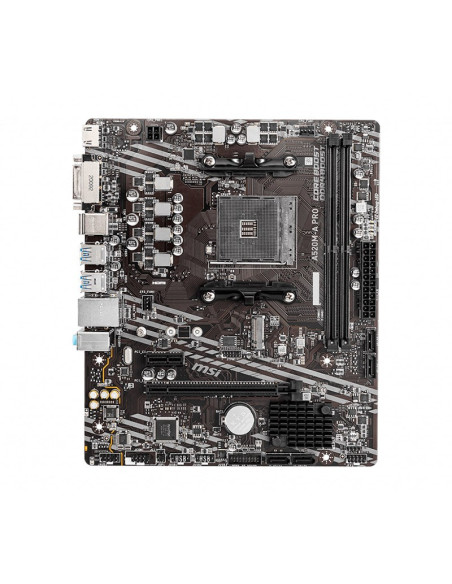

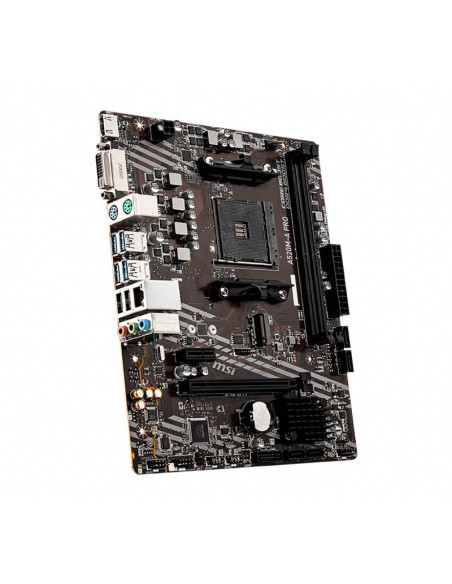

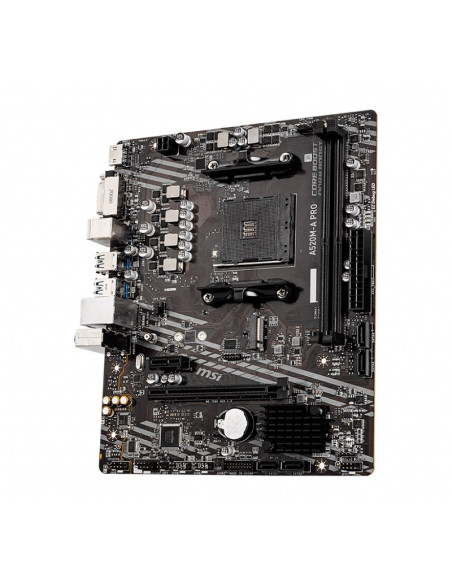

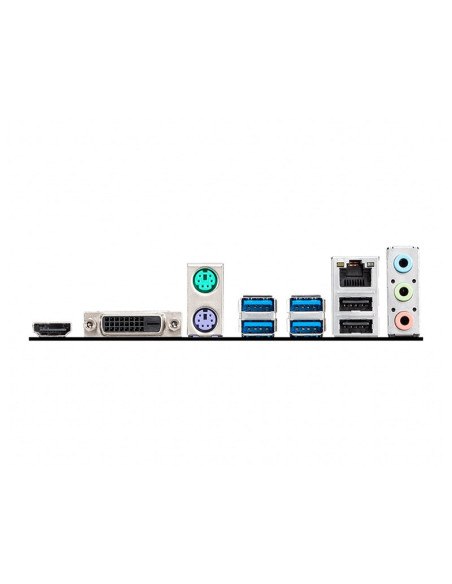

MSI A520M-A Pro Micro-ATX AMD Socket AM4

Procesador

• Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

Chipset

• AMD A520 Chipset

Memoria

• 2x DDR4 memory slots, support up to 64GB
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

Slots

• 1x PCIe 3.0 x1 slot
• 1x PCIe x16 slot

Gráficos

• 1x HDMI 2.1
• 1x DVI-D

Almacenamiento

• 4x SATA 6Gb/s ports
• 1x M.2 slot (Key M) (from AMD Processor)
• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
• 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio

• Realtek® ALC892/ALC897 Codec

Conectividad y redes

• 1x Realtek® RTL8111H Gigabit LAN controller

Conectores Internos

• 1x 24-pin ATX main power connector
• 1x 4-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1xTPM module connector
• 1x Clear CMOS jumper
