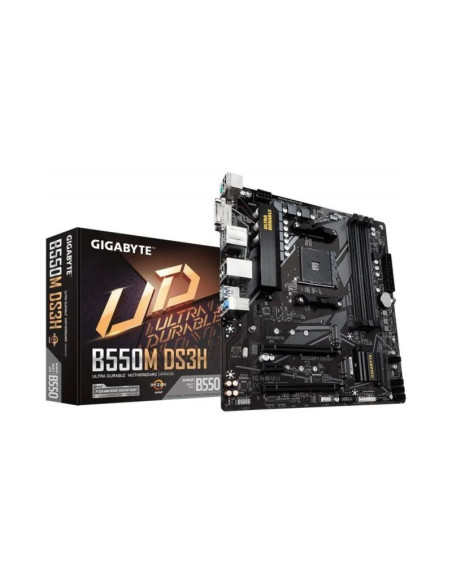

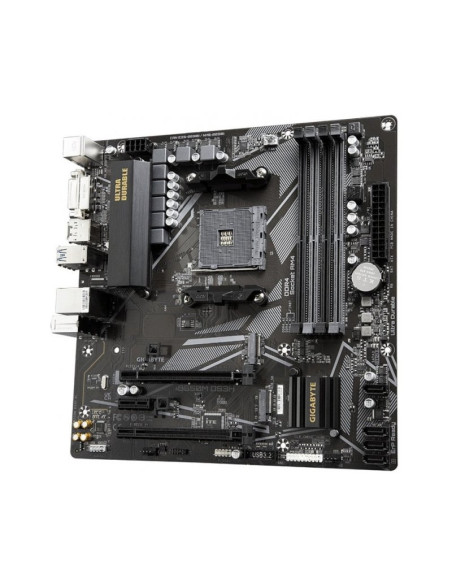

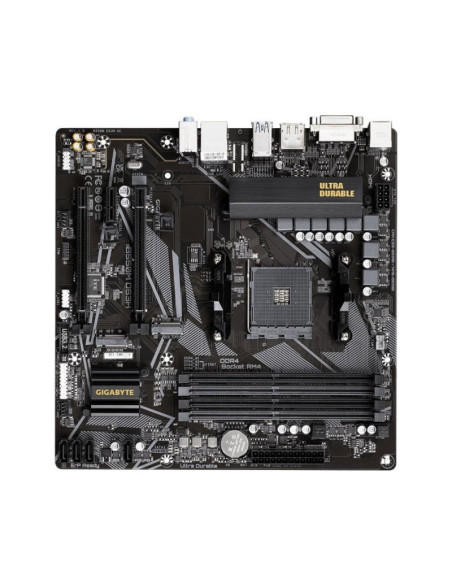

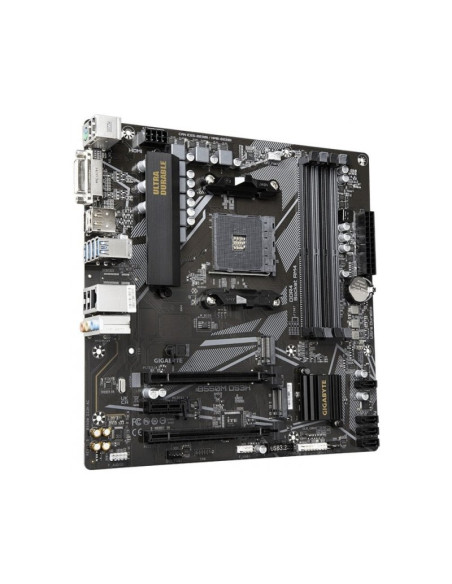

Gigabyte B550M DS3H Micro-ATX AMD Socket AM4

Procesador

• AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors. (Consultar compatibilidad de los procesadores AMD Ryzen 5 3400G y AMD Ryzen 3 3200G con el fabricante).

Chipset

• AMD B550

Memoria

• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• 3rd Gen AMD Ryzen™ Processors:
• Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• New Generation AMD Ryzen™ with Radeon™ Graphics processors:
• Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• Arquitectura de memoria Dual Channel
• Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8
• Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
• Soporte para módulos de memoria Extreme Memory Profile (XMP)

Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
• 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
• * Para un rendimiento óptimo, aunque sea con una única tarjeta gráfica PCI Express instalada, asegúrese de conectarla en la ranura PCIEx16.
• 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
• Supporting PCIe 3.0 x4 mode
• 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
• Supporting PCIe 3.0 x1 mode

Gráficos

• Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• * The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs::
• 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
• 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs::
• Supporting SATA and PCIe 3.0 x2 SSDs
• 4 x SATA 6Gb/s connectors, integrated in the Chipset::
• Soporta RAID 0, RAID 1, y RAID 10

Conectores USB

• Chipset:
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• CPU:
• 4 x USB 3.2 Gen 1 ports on the back panel

Audio

• Realtek® ALC887 codec
• Audio de alta definición
• 2/4/5.1/7.1-channel

Conectividad y redes

• Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Conectores internos

• 1 x conector de alimentación principal ATX 24-pin
• 1 x conector de alimentación ATX 12V 8-pin
• 1 x conector del ventilador de la CPU
• 2 x cabeceras para ventilador del sistema
• 2 x Addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x conectores M.2 Socket 3
• 4 x conectores SATA 6 Gb / s
• 1 x conector del panel frontal
• 1 x conector de audio en el panel frontal
• 1 x USB 3.2 Gen 1 header
• 1 x conector USB 2.0/1.1
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x conector del puerto de serie
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

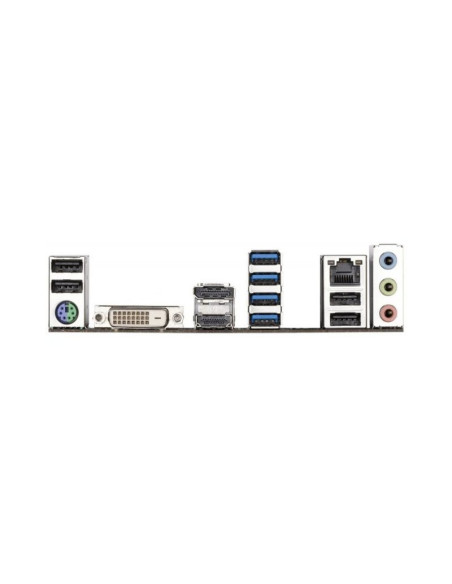

Conectores traseros

• 1 x puerto teclado / ratón PS / 2
• 1 x puerto DVI-D
• 1 x HDMI
• 4 x USB 3.2 Gen 1 ports
• 4 x puertos USB 2.0/1.1
• 1 x Puerto RJ-45
• 3 x audio jacks

Factor de forma

• Micro ATX (24,4cm x 24,4 cm)
