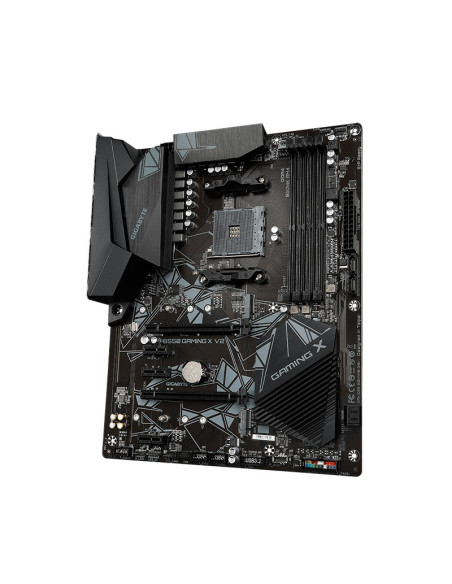

Gigabyte B550 Gaming X V2 ATX AMD Socket AM4

Procesador

• AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors

Chipset

• AMD B550

Memoria

• AMD Ryzen™ 5000 series processors:
• Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Arquitectura de memoria Dual Channel
• Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules

Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
• 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset
• 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset

Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs
• 4 x SATA 6Gb/s connectors, integrated in the Chipset

Conectores USB

• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 3 x USB 3.2 Gen 1 ports on the back panel
• 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 6 x puerto USB 2.0/1.1 (2 puertos en el panel posterior, 4 puertos disponibles a través de los conectores USB internos)

Audio

• Realtek® ALC887 codec

Conectividad y redes

• Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Conectores internos

• 1 x conector de alimentación principal ATX 24-pin
• 1 x conector de alimentación ATX 12V 8-pin
• 1 x conector del ventilador de la CPU
• 1 x conexión del ventilador para refrigeración por agua
• 3 x conector del ventilador del sistema
• 2 x Addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x conectores M.2 Socket 3
• 4 x conectores SATA 6 Gb / s
• 1 x conector del panel frontal
• 1 x conector de audio en el panel frontal
• 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x conectores USB 2.0/1.1
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper

Conectores traseros

• 2 x puerto USB 2.0/1.1
• 1 x puerto teclado / ratón PS / 2
• 1 x puerto DVI-D
• 1 x HDMI
• 3 x USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x Q-Flash Plus button
• 1 x Puerto RJ-45
• 3 x audio jacks

Factor de forma

• Formato ATX (30.5 x 24.4cm)

Más información en la web del fabricante: http://es.gigabyte.com/products/page/mb/B550-Gaming-X-V2-rev-10#sp
