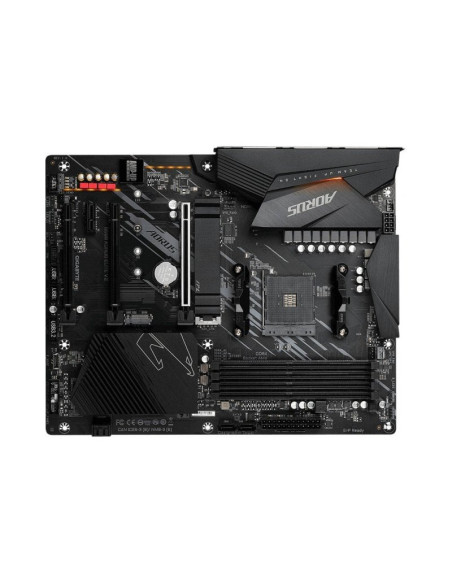

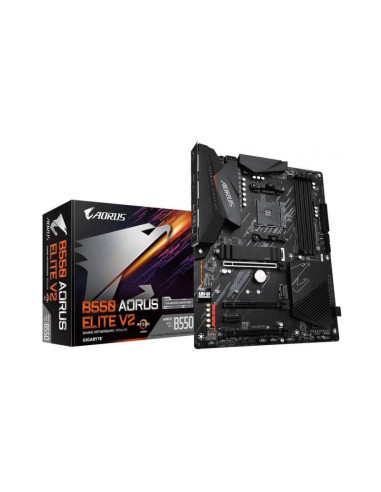

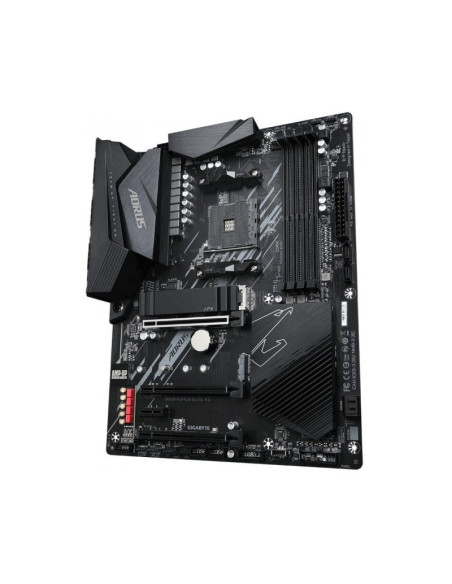

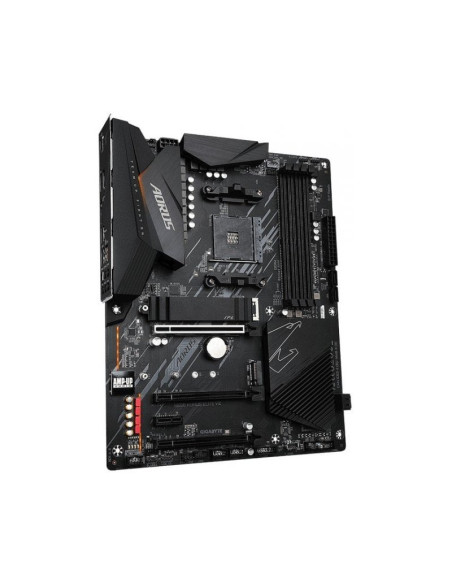

Gigabyte B550 AORUS Elite V2 ATX AMD Socket AM4

Procesador

• AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors

Chipset

• AMD B550

Memoria

• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• 3rd Gen AMD Ryzen™ Processors:
• Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
• Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• Arquitectura de memoria Dual Channel
• Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8
• Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
• Soporte para módulos de memoria Extreme Memory Profile (XMP)

Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• - 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
• - 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
• * Para un rendimiento óptimo, aunque sea con una única tarjeta gráfica PCI Express instalada, asegúrese de conectarla en la ranura PCIEx16.
• 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
• - Supporting PCIe 3.0 x2 mode
• 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
• - Supporting PCIe 3.0 x1 mode
• 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
• - Supporting PCIe 3.0 x1 mode

Gráficos

• Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
• 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
• * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
• - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
• - 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
• - Supporting SATA and PCIe 3.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors, integrated in the Chipset:
• - Soporta RAID 0, RAID 1, y RAID 10

Conectores USB

• 4 x puertos USB 2.0/1.1 disponible a través de los conectores USB internos de la placa base
• 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
• 1 x USB 3.2 Gen 1 port on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 2 x USB 2.0/1.1 ports on the back panel
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 2 x USB 3.2 Gen 1 ports on the back panel

Audio

• Realtek® ALC1200 codec
• Audio de alta definición
• 2/4/5.1/7.1-channel
• Soporte para salida S / PDIF

Conectividad y redes

• Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Conectores internos

• 1 x conector de alimentación principal ATX 24-pin
• 1 x conector de alimentación ATX 12V 8-pin
• 2 x conectores M.2 Socket 3
• 4 x conectores SATA 6 Gb / s
• 1 x conector del ventilador de la CPU
• 1 x conexión del ventilador para refrigeración por agua
• 3 x conector del ventilador del sistema
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x Addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x conector del panel frontal
• 1 x conector de audio en el panel frontal
• 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x conectores USB 2.0/1.1
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• La función TPM es opcional según las diferentes políticas locales
• 1 x Clear CMOS jumper

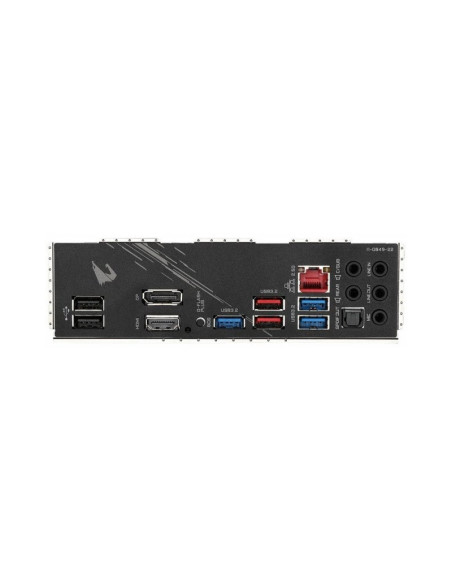

Conectores traseros

• 1 x DisplayPort
• 1 x HDMI
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 3 x USB 3.2 Gen 1 ports
• 2 x puerto USB 2.0/1.1
• 1 x Q-Flash Plus button
• 1 x Puerto RJ-45
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

Factor de forma

• ATX (30.5cm x 24.4cm)

Más información en la web del fabricante: http://es.gigabyte.com/products/page/mb/B550-AORUS-Elite-V2-rev-10#sp
