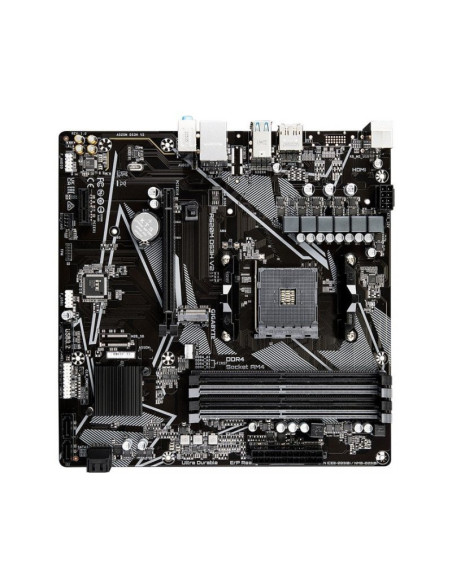

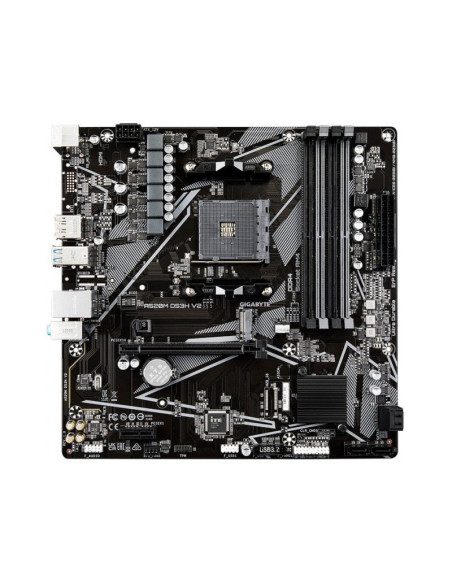

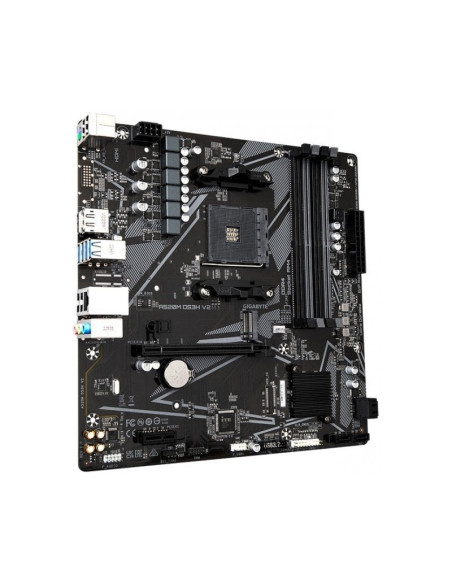

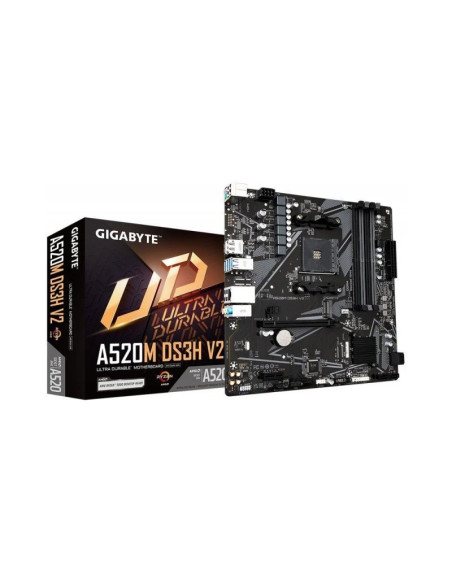

Gigabyte A520M-DS3H V2 Micro-ATX AMD Socket AM4

0 Reviews
60,90 €
IVA incluido
¡En stock! Recíbelo en 24/48h

La Gigabyte A520M-DS3H V2 es una placa base diseñada para aquellos que buscan rendimiento y eficiencia sin compromisos. Con la capacidad de soportar procesadores AMD Ryzen™ de generación 5000, esta placa se convierte en el corazón perfecto de tu sistema de gaming o trabajo. Su compatibilidad con memoria DDR4 de hasta 128 GB la hace ideal para usuarios exigentes que buscan maximizar el potencial de su computadora.

P/N: A520M DS3H V2 G10
EAN: 4719331854690
Ref.: PB02GB98

Opciones de financiación



Equipada con el chipset AMD A520, brinda una excelente conectividad a través de sus múltiples puertos USB 3.2 Gen 1 y USB 2.0, asegurando que tus dispositivos periféricos funcionen con la máxima eficiencia.

Para el almacenamiento, ofrece un conector M.2 para SSDs de alta velocidad y cuatro conectores SATA de 6Gb/s integrados en el chipset, aportando múltiples opciones para la gestión y acceso rápido a tus datos.

Su formato Micro ATX hace que la Gigabyte A520M-DS3H V2 sea perfecta para configuraciones compactas sin sacrificar desempeño. Las posibilidades de conexión se amplían con un sinfín de conectores internos perfeccionados para facilitar la construcción y actualización de cualquier sistema.

Procesador

  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Chipset

  • AMD A520

Memoria

  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules

Slots

  • 1 x PCI Express x16 slot, integrated in the CPU
  • 1 x PCI Express x1 slot, integrated in the Chipset

Gráficos

  • 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Almacenamiento

  • 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
  • 4 x SATA 6Gb/s connectors, integrated in the Chipset

USB

  • 4 x USB 3.2 Gen 1 ports on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Audio

  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel

Conectividad y redes

  • Realtek GbE LAN chip (1 Gbps/100 Mbps)

Conectores Internos

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper

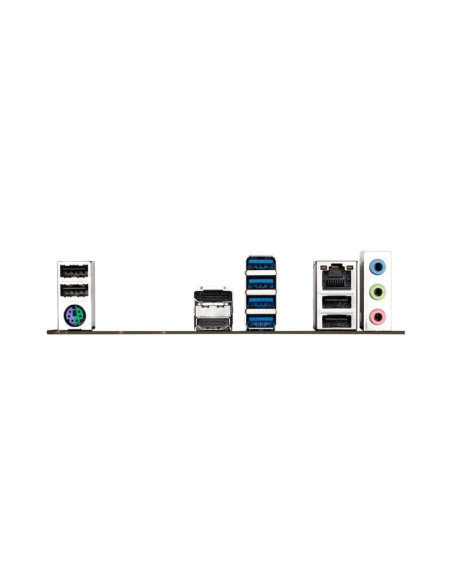

Conectores Traseros

  • 1 x PS/2 (Teclado / Ratón)
  • 1 x DisplayPort
  • 1 x HDMI
  • 4 x USB 3.2 (Gen 1) Tipo A
  • 2 x USB 2.0 Tipo A
  • 1 x RJ45 (1GbE)
  • 3 x Jack 3.5mm

Factor de forma

  • Micro ATX (24.4cm x 24.4cm)

Más información en la web del fabricante: https://www.gigabyte.com/es/Motherboard/A520M-DS3H-V2-rev-10/sp#sp
