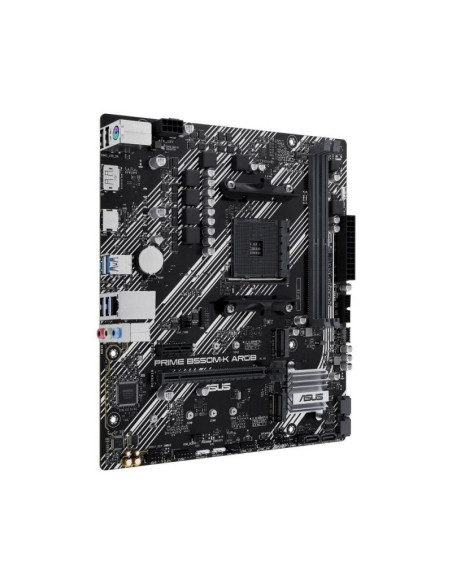

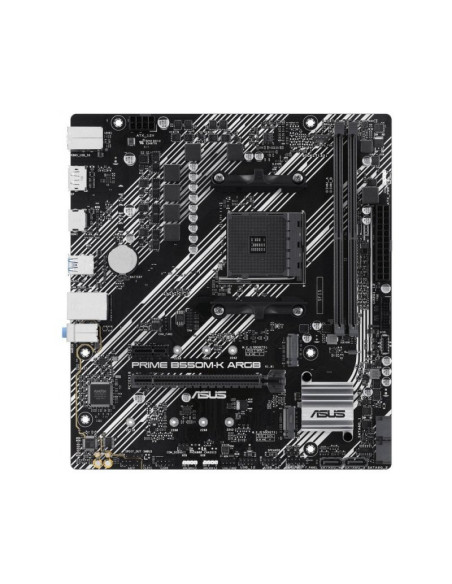

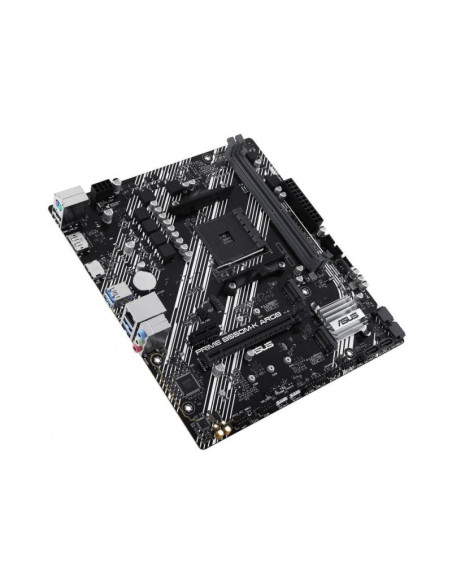

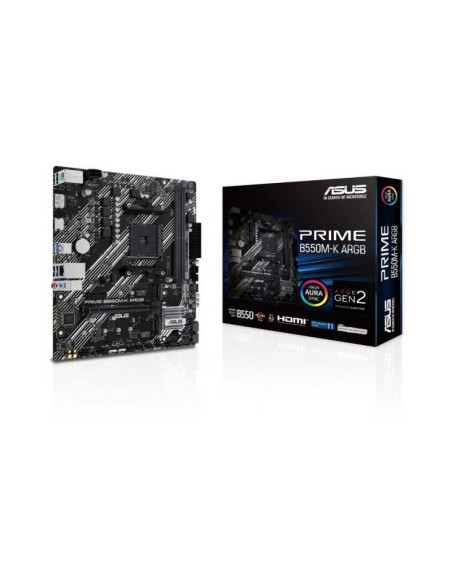

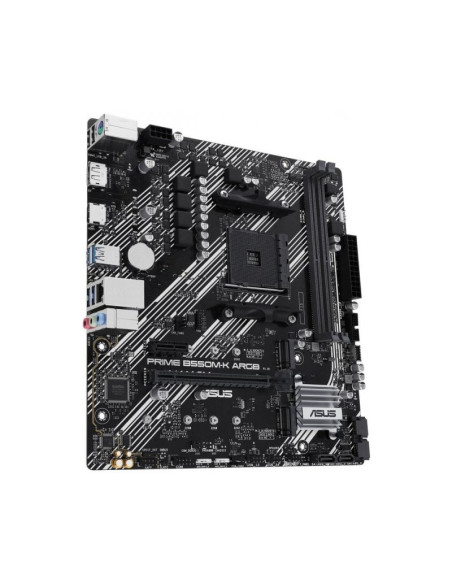

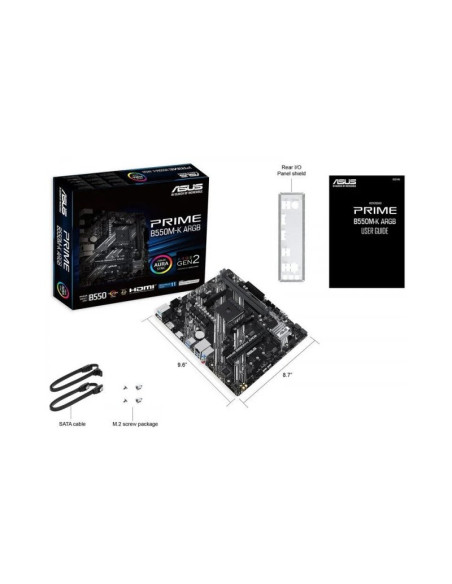

Asus Prime B550M-K ARGB Micro-ATX AMD Socket AM4

Procesador

• AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset

• AMD B550

Memoria

• 2 x DIMM slots, Max. 64GB, DDR4
• 5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/
• 3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*
• Dual Channel Memory Architecture

Slots

• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• 1 x PCIe 3.0 x16 slot (supports x16 mode)
• 1 x PCIe 3.0 x1 slot

Gráficos

• 1 x DisplayPort
• 1 x HDMI

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

USB

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Realtek 1Gb Ethernet

Conectores Internos

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

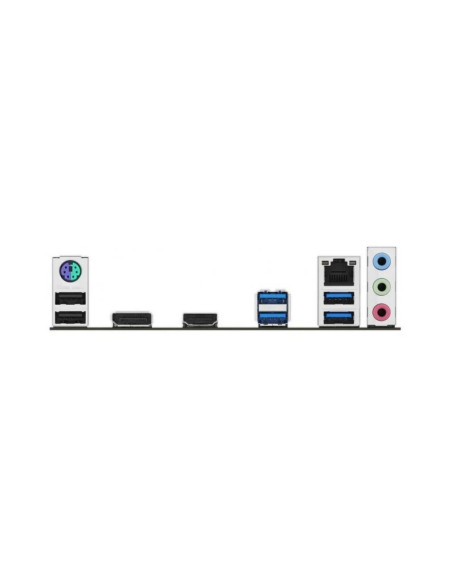

Conectores Traseros

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Factor de forma

• micro-ATX ( 24.4 cm x 22.1 cm )

Más información en la web del fabricante: https://www.asus.com/motherboards-components/motherboards/prime/prime-b550m-k-argb/techspec/
