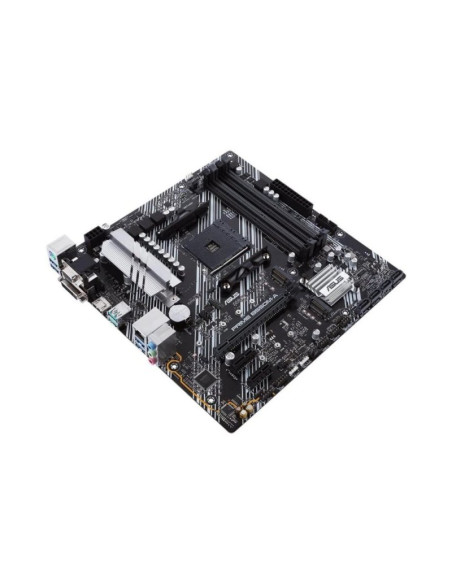

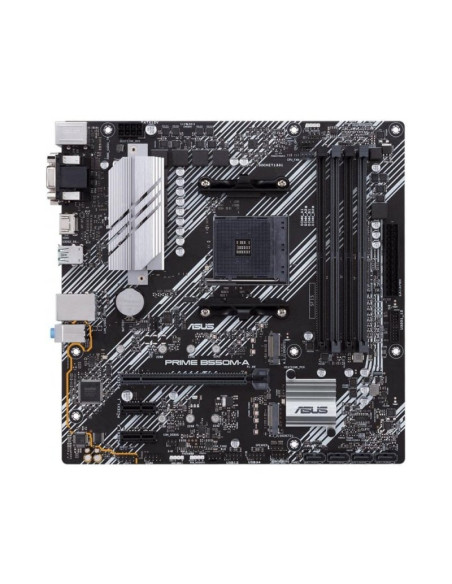

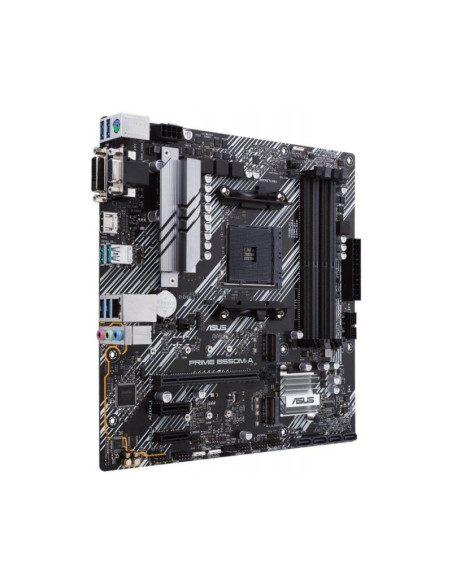

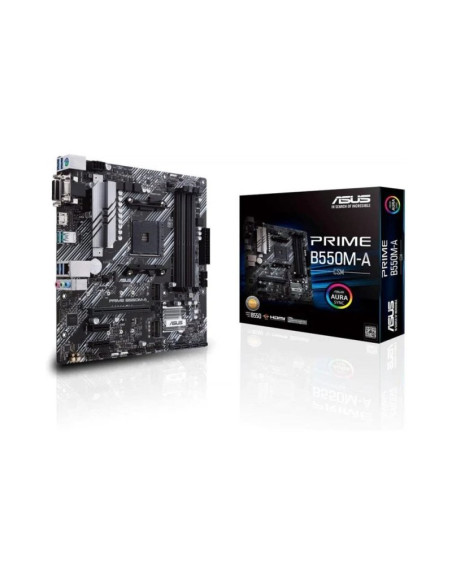

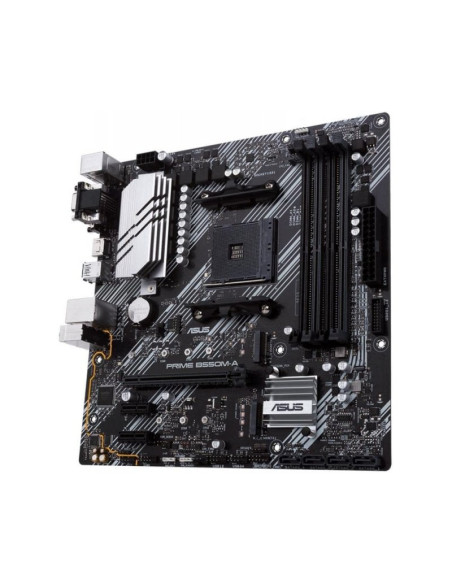

Asus Prime B550M-A/CSM Micro-ATX AMD Socket AM4

Procesador

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset

• AMD B550

Memoria

• 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/
• 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
• Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.

Slots

• 1 x PCIe 4.0 x16 (x16 mode)
• 1 x PCIe 3.0 x16 (x16 mode)
• 2 x PCIe 3.0 x1

Gráficos

• 1 x D-Sub
• 1 x DVI-D
• 1 x HDMI 2.1

Almacenamiento

• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
• 4 x SATA 6Gb/s port(s),

USB

• 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 4 x USB 2.0 port(s)(4 x Type-A)

Audio

• Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• LED-illuminated design - Audio Shielding
• Dedicated audio PCB layers
• Premium Japanese audio capacitors

Conectividad y redes

• Realtek RTL8111H 1Gb Ethernet

Conectores Internos

• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 1 x SPI TPM header 4 x SATA 6Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header 1 x Speaker connector

Conectores Traseros

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 3 x Audio jack(s)

Factor de forma

• mATX ( 24.4 cm x 24.4 cm
