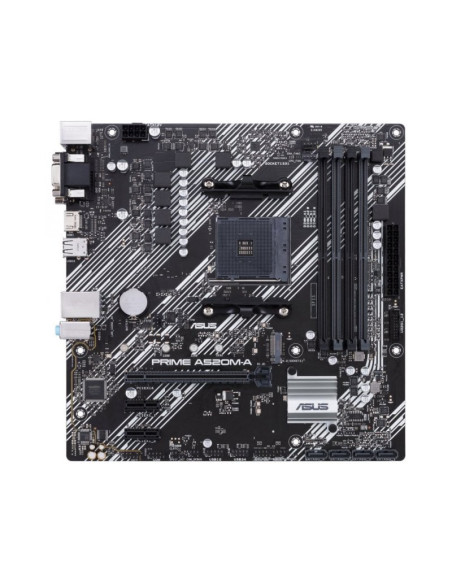

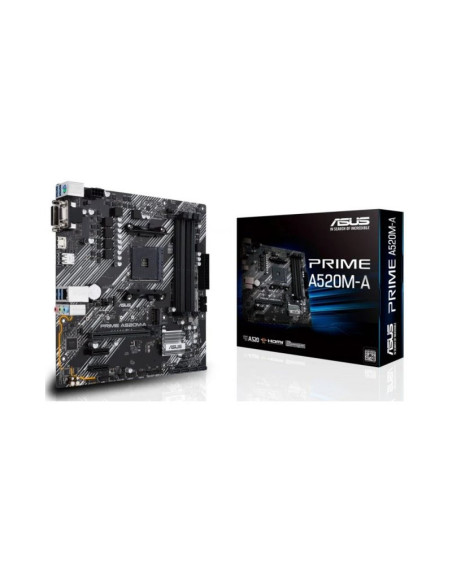

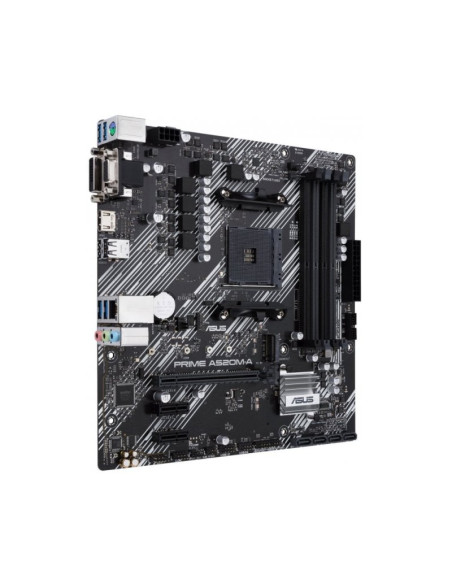

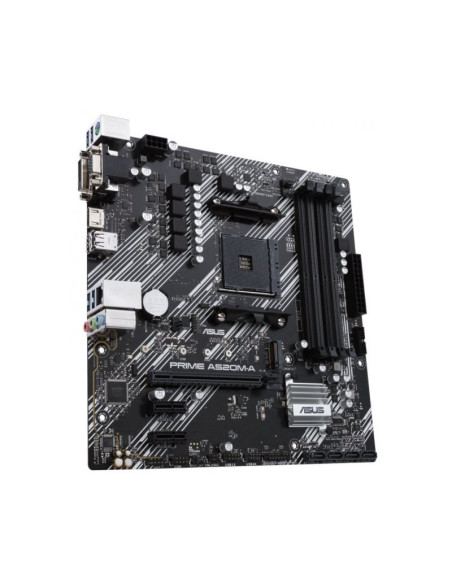

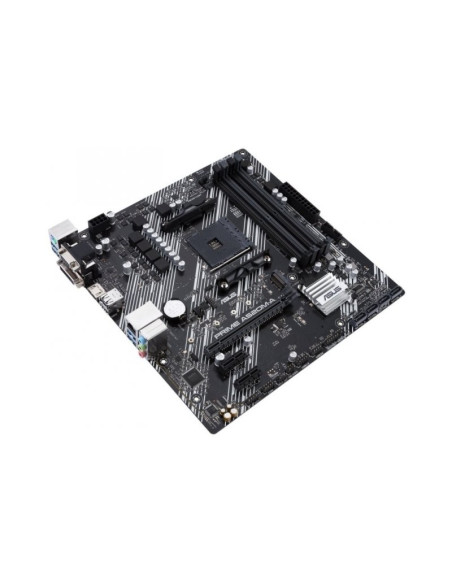

Asus Prime A520M-A II/CSM Micro-ATX AMD Socket AM4

Procesador

• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset

• AMD A520

Memoria

• Memory Channels: 4DDR4 (Dual channel)
• Max Memory Size: 128GB
• 4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/
• 3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*
• Dual Channel Memory Architecture

Slots

• 1 x PCIe 3.0 x16 (x16 mode)
• 1 x PCIe 3.0 x16 slot (supports x16 mode)
• 2 x PCIe 3.0 x1 slots

Gráficos

• 1 x D-Sub
• 1 x HDMI

Almacenamiento

• Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
• Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• Support Raid 0, 1, 10

USB

• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
• Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
• Audio Shielding
• Premium Japanese audio capacitors
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Realtek 1Gb Ethernet

Conectores Internos

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 2 x AURA Addressable Gen 2 header
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

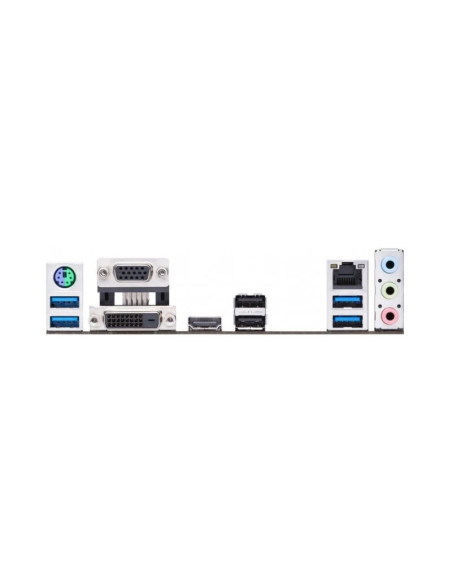

Conectores Traseros

• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x D-Sub
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Factor de forma

• Micro-ATX (24.4cm x 24.4cm)

Más información en la web del fabricante: https://www.asus.com/latin/motherboards-components/motherboards/csm/prime-a520m-a-ii-csm/techspec/
