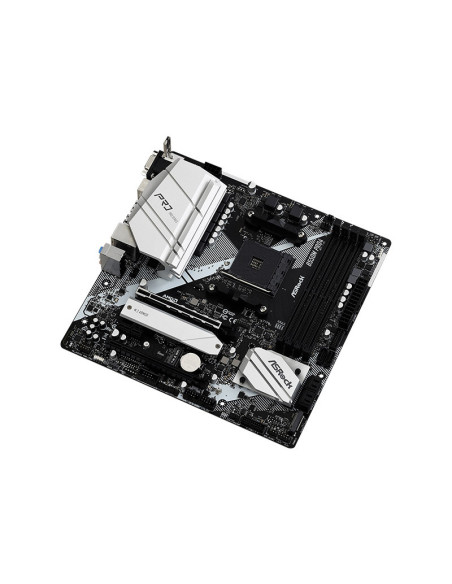

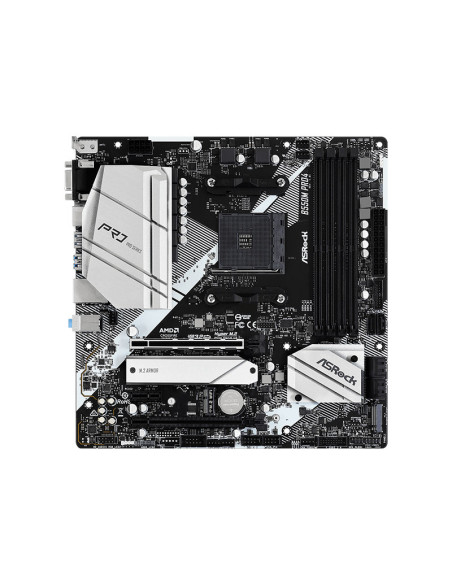

AsRock B550M Pro4 Micro-ATX AMD Socket AM4

Procesador

• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

Chipset

• B550

Memoria

• 4 x DDR4 DIMM Slots
• Supports DDR4 4733+ (OC)
• Max. capacity of system memory: 128GB
• Supports Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCIe 4.0 x16
• 1 x PCIe 3.0 x16
• 1 x PCIe 3.0 x1
• 1 x M.2 Key E for WiFi

Gráficos

• AMD CrossFireX
• HDMI, DisplayPort, D-Sub

Almacenamiento

• 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) or Gen3x4 (32 Gb/s)
• 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)

Audio

• 7.1 CH HD Audio with Content Protection (Realtek ALC1220/ALC1200 Audio Codec)

Conectividad y redes

• Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Conectores Internos

• 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers
• 2 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

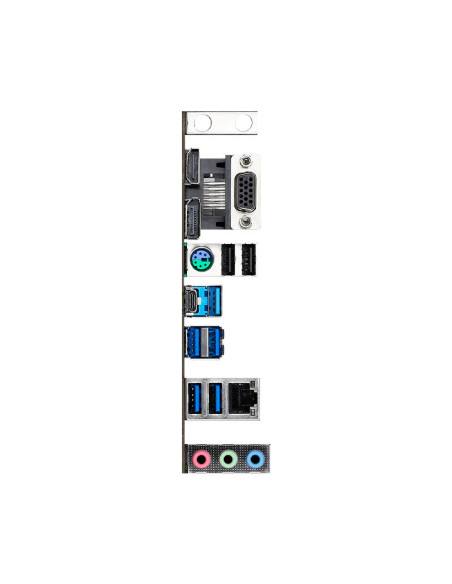

Conectores Traseros

• Antenna Bracket
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
• 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Factor de forma

• Micro ATX (24.4 x 24.4 cm)

Más información en la web del fabricante: https://www.asrock.com/mb/AMD/B550M%20Pro4/index.asp#Specification
