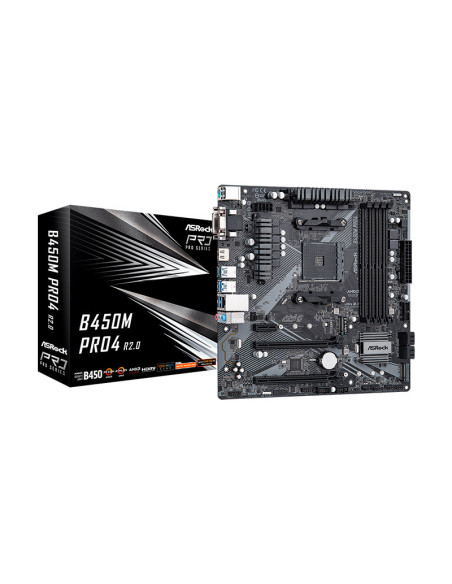

AsRock B450M Pro4 R2.0 Micro-ATX AMD Socket AM4

Procesador

• Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

Chipset

• B450

Memoria

• 4 x DDR4 DIMM Slots
• Supports DDR4 3200
• Max. capacity of system memory: 128GB
• Supports Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCIe 3.0 x16
• 1 x PCIe 2.0 x16
• 1 x PCIe 2.0 x1

Gráficos

• AMD Quad CrossFireX™
• Three graphics output options: D-Sub, DVI-D and HDMI

Almacenamiento

• 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) or Gen3 x2 (16 Gb/s)
• 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module

Audio

• 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)

Conectividad y redes

• Realtek Gigabit LAN
• Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Conectores Internos

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 1 x Addressable LED Header
• 1 x AMD Fan LED Header
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

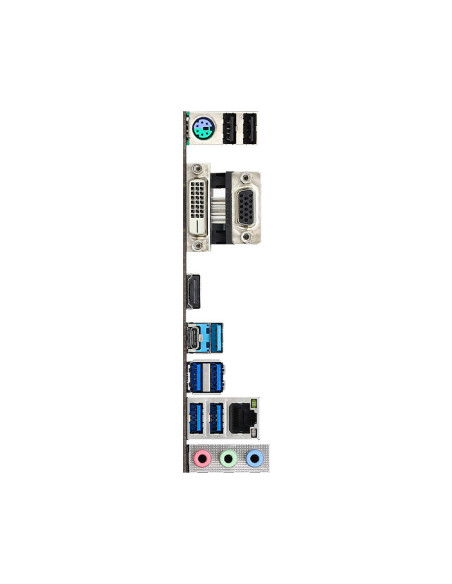

Conectores Traseros

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Factor de forma

• Micro ATX (4.4 x 24.4 cm)

Más información en la web del fabricante: https://www.asrock.com/mb/AMD/B450M%20Pro4%20R2.0/index.asp#Specification
